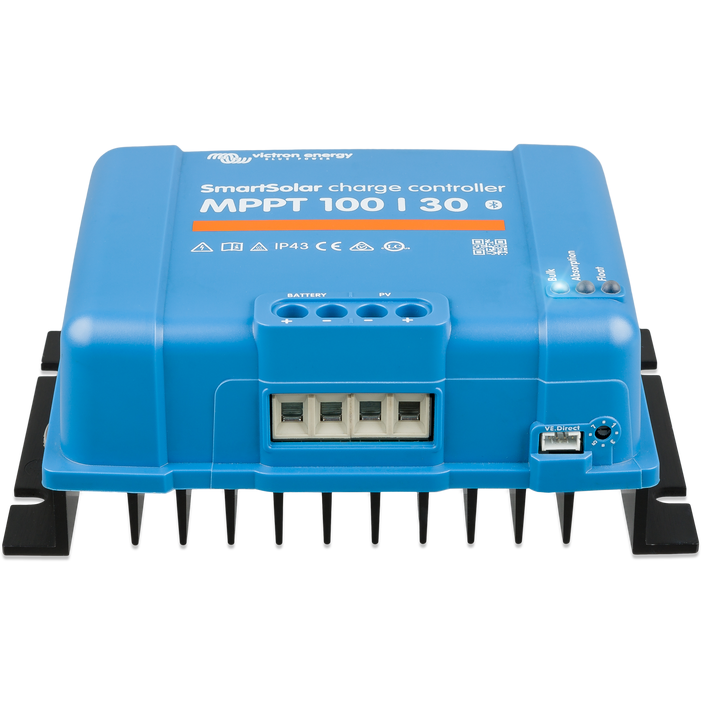

The SmartSolar MPPT 100/30 is a highly efficient solar charge controller from Victron Energy. It comes with built-in Bluetooth Smart, allowing for easy setup, monitoring, updating, and synchronization. The device employs ultra-fast Maximum Power Point Tracking (MPPT) to enhance energy harvest, especially during cloudy days with fluctuating light intensity. The controller's advanced MPPT detection ensures optimal energy harvest even in partial shading conditions. With a maximum efficiency exceeding 98% and no need for a cooling fan, this device is designed for optimal performance.
Features
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updating, and synchronization.
- VE.Direct: For a wired data connection to a Color Control GX, other GX products, PC, or other devices.
- Ultrafast MPPT: Improves energy harvest by up to 30% compared to PWM charge controllers.
- Advanced MPPT Detection: Ensures optimal energy harvest in partial shading conditions.
- Flexible Charge Algorithm: Comes with a fully programmable charge algorithm and eight pre-programmed algorithms.
- Extensive Electronic Protection: Includes over-temperature protection, PV short circuit, PV reverse polarity, and PV reverse current protection.
- Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.
- Optional External Battery Sensing: Via Bluetooth using Smart Battery Sense or BMV-712 Smart Battery Monitor.
- Fully Discharged Battery Recovery: Initiates charging even if the battery has been discharged to zero volts.
Specifications
- Battery Voltage: 12/24 V Auto Select
- Rated Charge Current: 30 A
- Nominal PV Power (12V): 440 W
- Nominal PV Power (24V): 880 W
- Maximum PV Open Circuit Voltage: 100 V
- Max. PV Short Circuit Current: 35 A
- Maximum Efficiency: 98%
- Self-consumption: 12 V: 30 mA, 24 V: 20 mA
- Charge Voltage 'Absorption': Default setting: 14.4 V / 28.8 V (adjustable)
- Charge Voltage 'Float': Default setting: 13.8 V / 27.6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
Shipping
- Weight: 1.3 kg
- Dimensions: 130 x 186 x 70 mm
Warranty
This product comes with a 5-year warranty.
