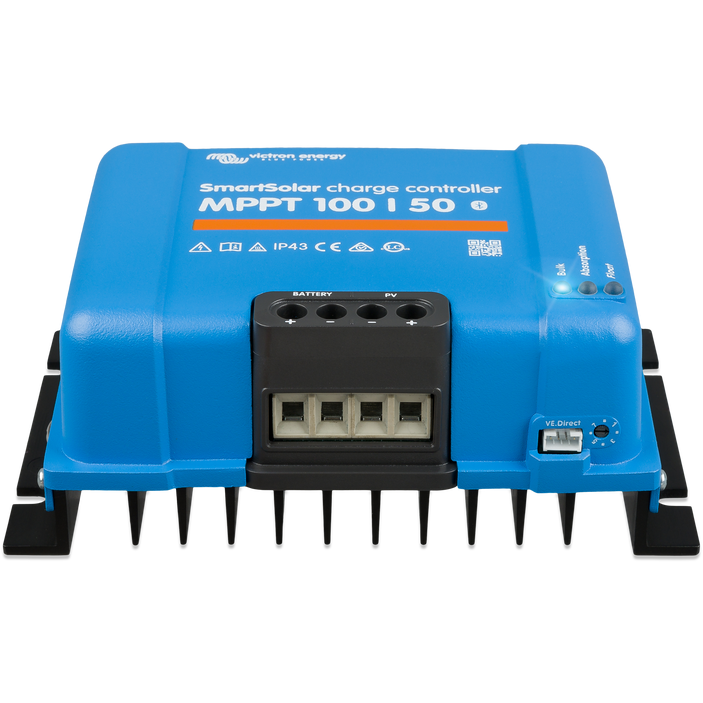

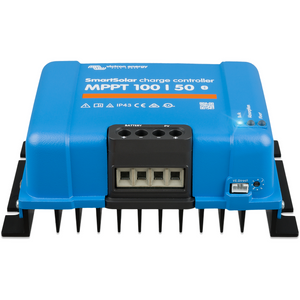

The SmartSolar MPPT 100/50 is a solar charge controller that optimizes the energy from your photovoltaic panels to ensure the most efficient charging of your batteries. With Bluetooth Smart built-in, it offers wireless setup, monitoring, updates, and synchronization. The controller boasts ultrafast Maximum Power Point Tracking (MPPT), especially beneficial in cloudy conditions, potentially improving energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection ensures optimal performance even in partial shading conditions.
Features
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronization.
- Ultrafast MPPT: Improves energy harvest by up to 30% compared to PWM charge controllers.
- Advanced MPPT Detection: Ensures optimal performance even in partial shading conditions.
- Outstanding Conversion Efficiency: Exceeds 98% without the need for a cooling fan.
- Flexible Charge Algorithm: Comes with eight pre-programmed algorithms, selectable with a rotary switch.
- Extensive Electronic Protection: Includes over-temperature protection, PV short circuit, PV reverse polarity, and PV reverse current protection.
- Internal Temperature Sensor: Adjusts absorption and float charge voltage based on temperature.
Specifications
- Battery Voltage: 12/24 V Auto Select
- Rated Charge Current: 50 A
- Nominal PV Power (12V): 700 W
- Nominal PV Power (24V): 1400 W
- Maximum PV Open Circuit Voltage: 100 V
- Max. PV Short Circuit Current: 60 A
- Maximum Efficiency: 98%
- Self-consumption: 12 V: 30 mA, 24 V: 20 mA
- Charge Voltage 'Absorption': Default setting: 14,4 V / 28,8 V (adjustable)
- Charge Voltage 'Float': Default setting: 13,8 V / 27,6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
Shipping
- Weight: 1.3 kg
- Dimensions: 130 x 186 x 70 mm
Warranty
This product comes with a 5-year warranty.
