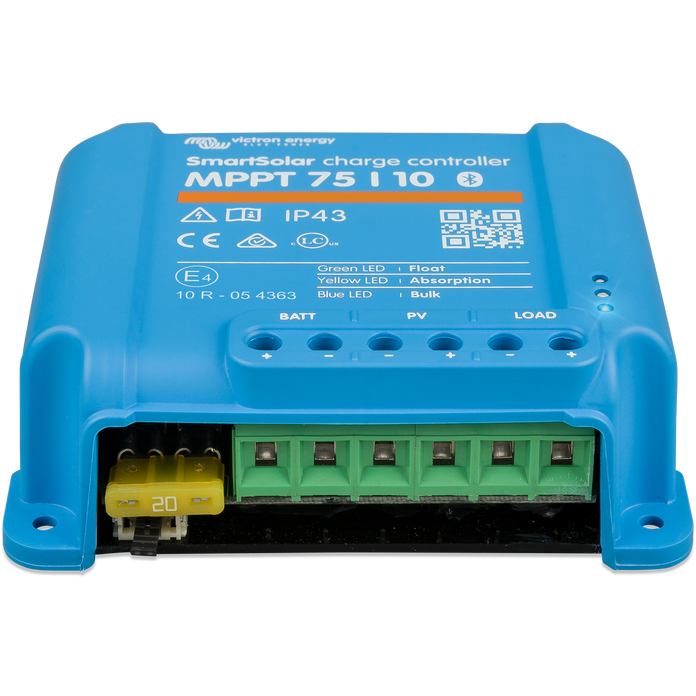

The SmartSolar MPPT 75/10 is an advanced solar charge controller that uses Maximum Power Point Tracking (MPPT) technology to ensure maximum efficiency in your solar energy system. With its built-in Bluetooth Smart capability, you can easily set up, monitor, update, and synchronise the SmartSolar Charge Controller. The ultra-fast MPPT improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Features
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation.
- Ultra-fast Maximum Power Point Tracking (MPPT): Enhances energy harvest especially in variable light conditions.
- Load Output: Prevents over-discharge by disconnecting the load at a pre-set voltage.
- Battery Life Algorithm: Ensures the battery is nearly fully recharged about once every week.
- Programmable Battery Charge Algorithm: Customizable for specific battery requirements.
- Day/Night Timing and Light Dimming Option: Available for specific applications.
- Internal Temperature Sensor: Adjusts charge voltage based on temperature.
Specifications
- Battery Voltage (Auto Select): 12/24 V
- Rated Charge Current: 10 A
- Nominal PV Power, 12 V: 145 W
- Nominal PV Power, 24 V: 290 W
- Max. PV Open Circuit Voltage: 75 V
- Peak Efficiency: 98%
- Charge Voltage 'Absorption': 14.4 V / 28.8 V (adjustable)
- Charge Voltage 'Float': 13.8 V / 27.6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C
- Max. Continuous Load Current: 10 A
- Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
- Dimensions (HxWxD): 100 x 113 x 40 mm
- Weight: 0.5 kg
Shipping
- Dimensions (HxWxD): 100 x 113 x 40 mm
- Weight: 0.5 kg
Warranty
This product comes with a 5-year warranty.
