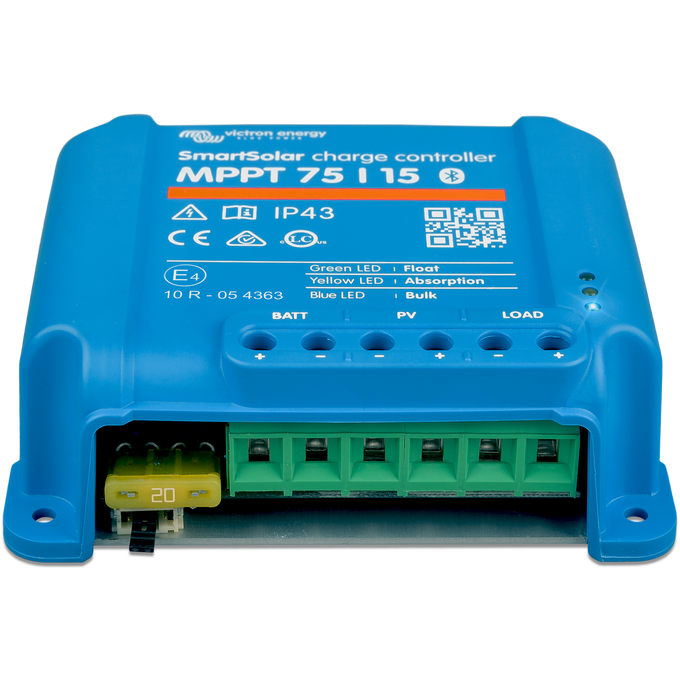

The SmartSolar MPPT 75/15 is a highly efficient solar charge controller from Victron Energy. It incorporates the latest and fastest technology to ensure that you get the most out of your solar panels. With built-in Bluetooth Smart, it offers a wireless solution to set-up, monitor, update, and synchronize the SmartSolar Charge Controllers.
Features
- Bluetooth Smart Built-in: Offers a wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
- Ultra-fast Maximum Power Point Tracking (MPPT): Especially beneficial in a clouded sky, where light intensity changes continuously. This ultra-fast MPPT controller can improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Load Output: Prevents over-discharge of the battery by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
- Battery Life: Intelligent battery management ensures the battery is nearly fully recharged about once every week.
- Programmable Battery Charge Algorithm: Offers flexibility in charging.
- Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.
Specifications
- Battery Voltage (Auto Select): 12/24 V
- Rated Charge Current: 15 A
- Max. PV Open Circuit Voltage: 75 V
- Nominal PV Power, 12 V: 145 W
- Nominal PV Power, 24 V: 290 W
- Peak Efficiency: 98%
- Charge Voltage 'Absorption': 14.4 V / 28.8 V (adjustable)
- Charge Voltage 'Float': 13.8 V / 27.6 V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C
- Max. Continuous Load Current: 15 A
- Low Voltage Load Disconnect: 11.1 V / 22.2 V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1 V / 26.2 V or Battery Life algorithm
- Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
- Data Communication Port: VE.Direct
- Weight: 0.6 kg
- Dimensions (HxWxD): 100 x 113 x 50 mm
Shipping
- Weight: 0.6 kg
- Dimensions (HxWxD): 100 x 113 x 50 mm
Warranty
This product comes with a 5-year warranty.
